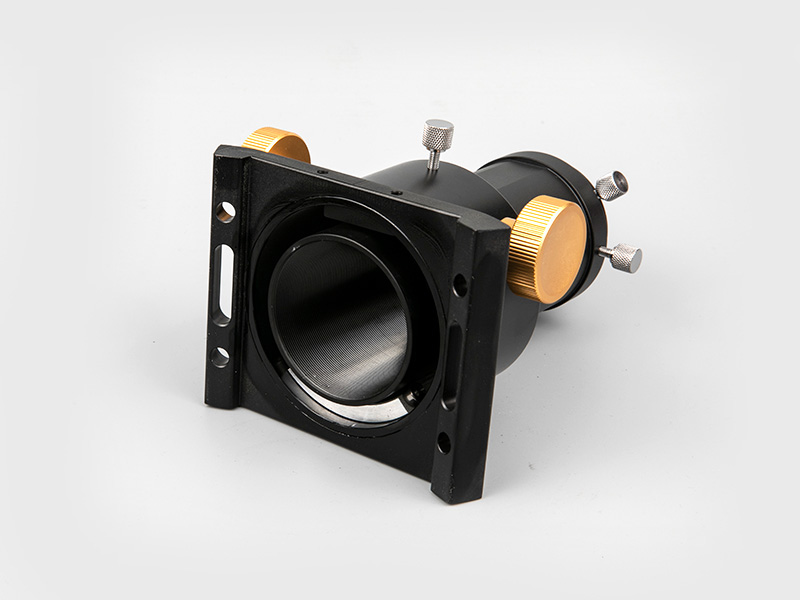

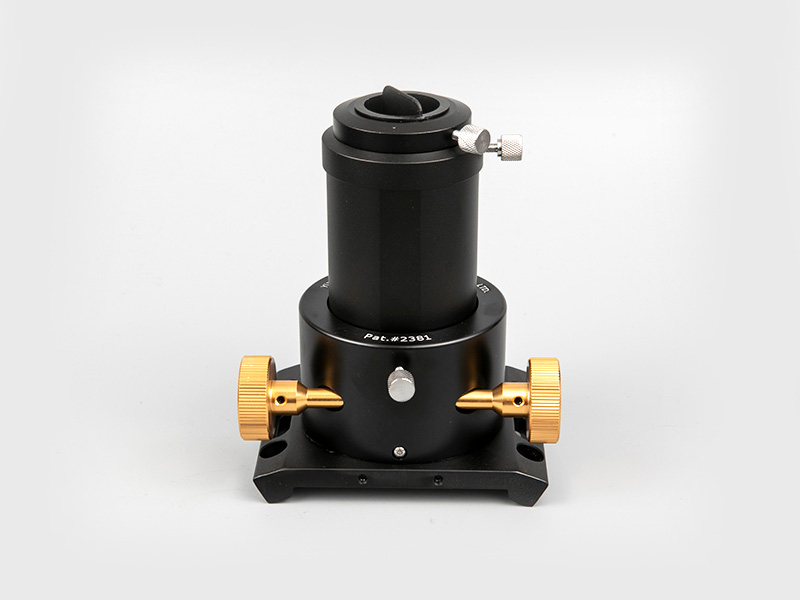

2" 1:10 Single-Speed Telescope Focuser for Reflector Telescope

2" 1:10 Single-Speed Telescope Focuser for Reflector Telescope

SYSTEM DESCRIPTION:

PRODUCT DETAILS:

Description:

  • This sigle-speed focuser is a great to use,focusers eliminate the annoying backlash and image-shift that plagues. You will experience very smooth and precisely controlled focuser motion.
  •  The 2" focuser features a brass compression ring and can accept standard 2" refractor-type diagonals and other accessories. Also included is a 1.25"-2" adapter with brass compression rings and threads to accept standard 2" filters.
  • This model features a 360-degree rotatable ring that allows you to orient the focuser (and hence your diagonal/eyepiece) to the most comfortable viewing position.
  • Detachable drive block assembly is reversible for right hand or left hand fine-focus operation and for attaching the Steeldrive motorblock onto Diamond-NT-Steel Tracks for newtonian telescopes.
  •  Shortest possible mechanical design achieves optimum balance between focuser height (backfocus) and rigidity requirements. Zero shift locking knob to precisely stop any movement without affecting optical axis adjustment.



Specification:

  • Type: Rack Pinion Design
  • Fit Type: Reflection Type Telescope
  • Material: Fully Metal
  • Fitting Diameter: 2 inch (50.8mm)
  • Size(L*W*H):17*9.5*15.5cm
  • Focus Knob Diameter:1.57" (40mm)
  • Thread:M94.5*1
  • Millimeter Markings on Focuser Drawtube: Yes
  • Rotatable: Yes

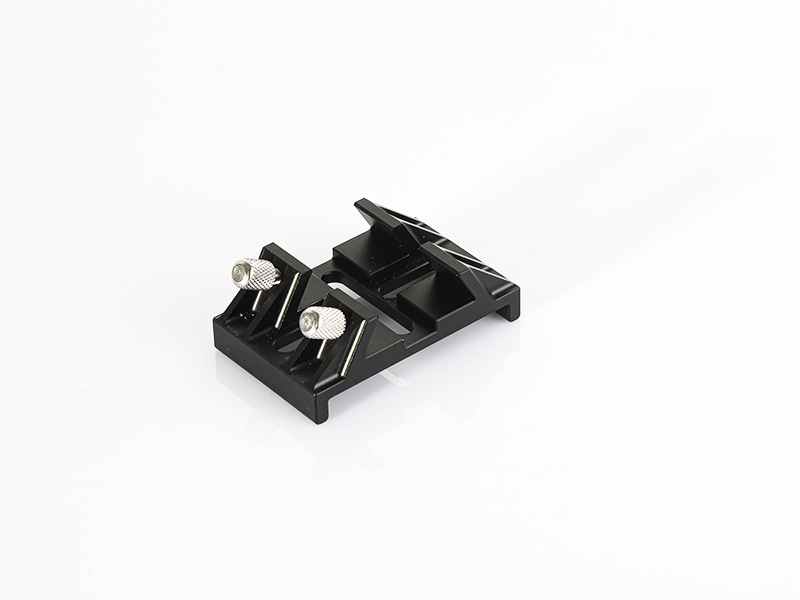

  • With Base Plate:Yes
  • With Base Plate:Yes
  • Suitable for Newtonian Reflector Telescope Focusing Range: 0-70mm
