50200mm Guide Scope

50200mm Guide Scope

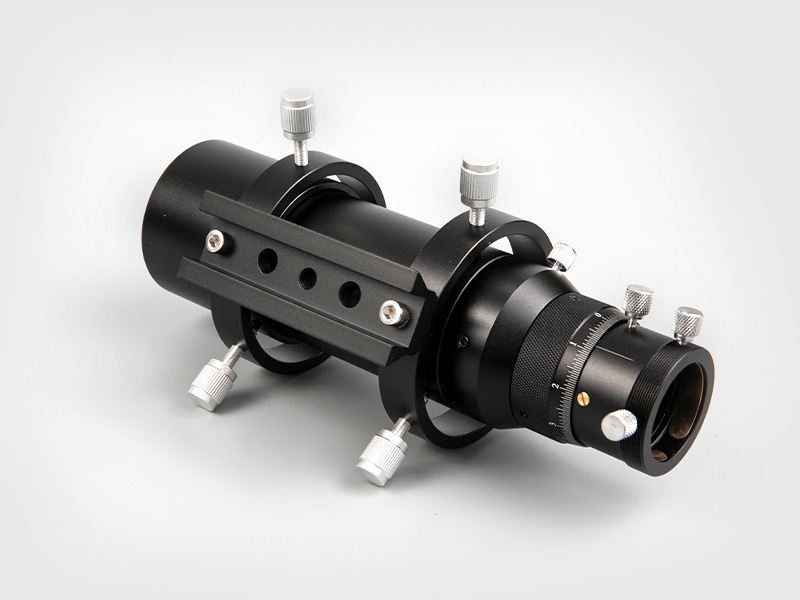

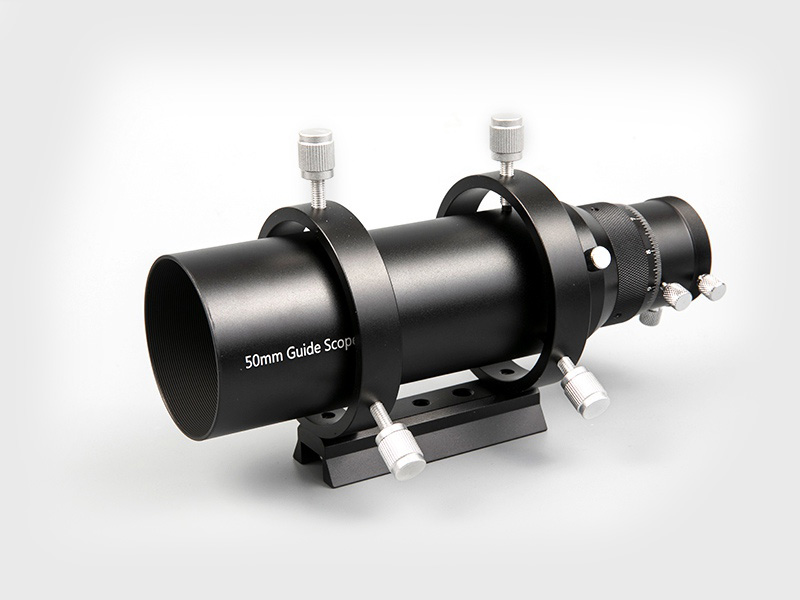

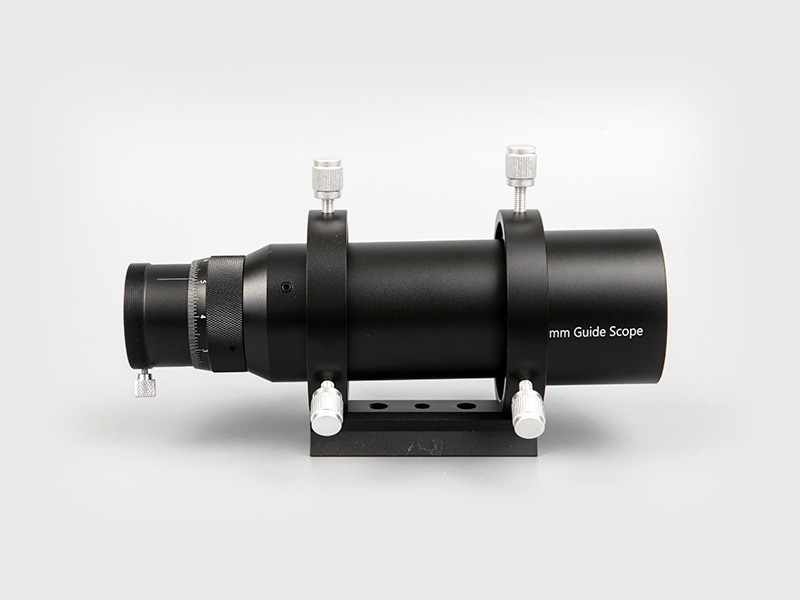

50mm Multi-Use Guide Scope Helical Focuser F3.8 FMC CCD Astronomy Camera
This solidly built 50mm Guide Scope will help guide you to capturing higher quality astrophotos. With its 50mm lens and smooth helical focuser, the versatile 50mm Multi-Use Guide Scope with Helical Focuser is an ideal addition to any astrophotographers collection of gear. What's more, you can use this handy scope as a deluxe, straight-through 50mm finder by inserting an optional 1.25" eyepiece (sold separately). A practical benefit of this is that prior to guiding, you can insert an eyepiece into the guide scope and easily align the guide scope with your main imaging telescope. Then remove the eyepiece and attach your autoguider camera.

The 50 mm Multi-Use Guide Scope with Helical Focuser features a built-in helical focuser that allows precise focus adjustments with zero flexure for rigid performance. Obtaining a clear, sharply focused view of potential guide stars is quick and easy with this sturdy scope. The fixed-orientation focuser mechanism will not rotate inserted autoguider cameras or eyepieces when focus adjustments are made. The helical focuser simply moves the attached device inwards or outwards while maintaining its orientation. This convenient feature means your field of potential guide stars will not rotate as focus is adjusted, further increasing ease of use.
The Multi-Use Guide Scope features a machined, knurled ring to make fine focus adjustments nice and easy, while a thumbscrew lets you lock-down the focuser in-place once adjustments are complete. The focuser boasts 8 mm of precise helical focus travel, plus telescoping drawtube housing provides up to 30 mm of additional back-travel if needed for your particular autoguider device. No extension tubes necessary! A compression ring fitting keeps any inserted autoguider cameras or eyepieces free of pesky scratches.
The Multi-Use Guide Scope with Helical Focuser also features male T-threads on the focuser collar for secure threaded attachment of guide cameras equipped with female T-threads.

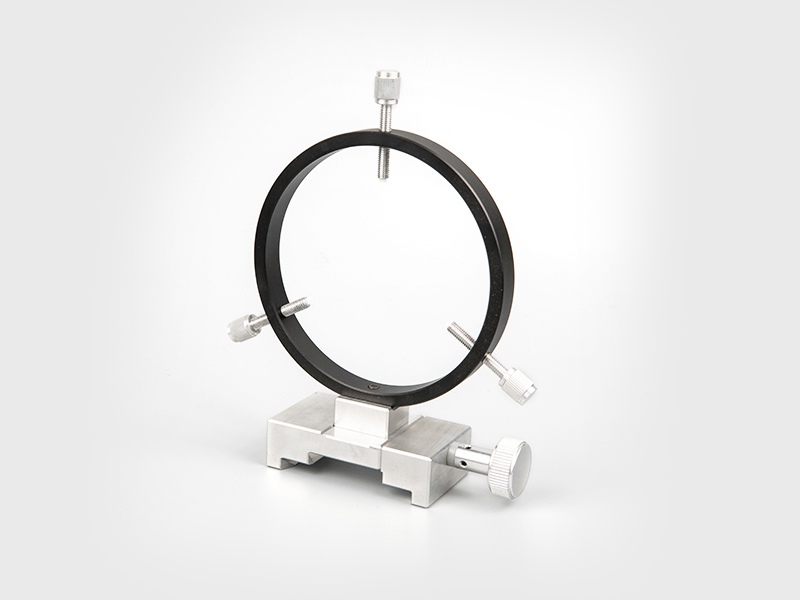

This complete guide scope comes with two heavy-duty guide scope rings and a 3.5" long, 1.18"wide dovetail mounting bar, which is compatible with dovetail finder scope bases for easy attachment. The dovetail bar features five threaded through-sockets for versatile attachment options. The included guide scope rings feature six metal thumbscrews for precise aiming.
For those nights when you don't plan to capture astrophoto exposures, this versatile Guide Scope can double as a straight-through finder scope with an optional 1.25" eyepiece installed. For example, inserting a 20 mm eyepiece creates a 9.5x50 finder scope, or you can insert one Illuminated Centering Eyepieces for use as a finder with illuminated crosshairs for easy aiming. (Eyepieces sold separately).

• Versatile 50mm aperture Guide Scope with a built-in helical focuser for precise focusing of potential guide stars
• Designed for use with the guider CCD astronomy camera or eyepiece
• Helical focuser collar will not rotate attached autoguider devices during focus adjustments
• Used as a deluxe straight-through finder scope with optional 1.25" eyepieces installed (eyepieces sold separately)
• Net weighs just 21.31oz
• Type of Telescope: Achromatic Refractor
• Lens: Cemented
• Tube material: Aluminum Alloy
• Aperture: 50mm / 1.97in
• Focal Length: 190mm / 7.48in
• Focal Ratio: F3.8
• Coating: Fully multi-coated
• Best for imaging: Deep sky
• User level: Intermediate
• Rough Focusing Range: 30mm
• Focuser: Helical Focuser with 8 mm Travel
• Connection to eyepiece: 1.25inch
• Tube diameter: 54.5mm
• Dewcap diameter: 61mm
• Total Length: 240mm
• Included accessories: Tube Rings and Dovetail Rail
• Net Weight: Approx. 604g / 21.31oz
Package Includes
• 50mm Primary Mirror
• Guiding Bracket w/ 89mm Dovetail Plate
• 1.25inch Helical Focuser
• 6PCS Metal Thumbscrews
